// Genuino Uno einstellen
// by Hans-Jörg Faißt 31.01.2016

#include <LedControl.h>
#include <SoftwareSerial.h>
SoftwareSerial mySerial(8, 9, true); // RX, TX

#define DISP_SEGMENT 0
#define DISP_MATRIX  1

int i=0;
float time=0.0;
char RxByte[10];

bool Debug = false;
int  DisplayType = DISP_MATRIX;

/*

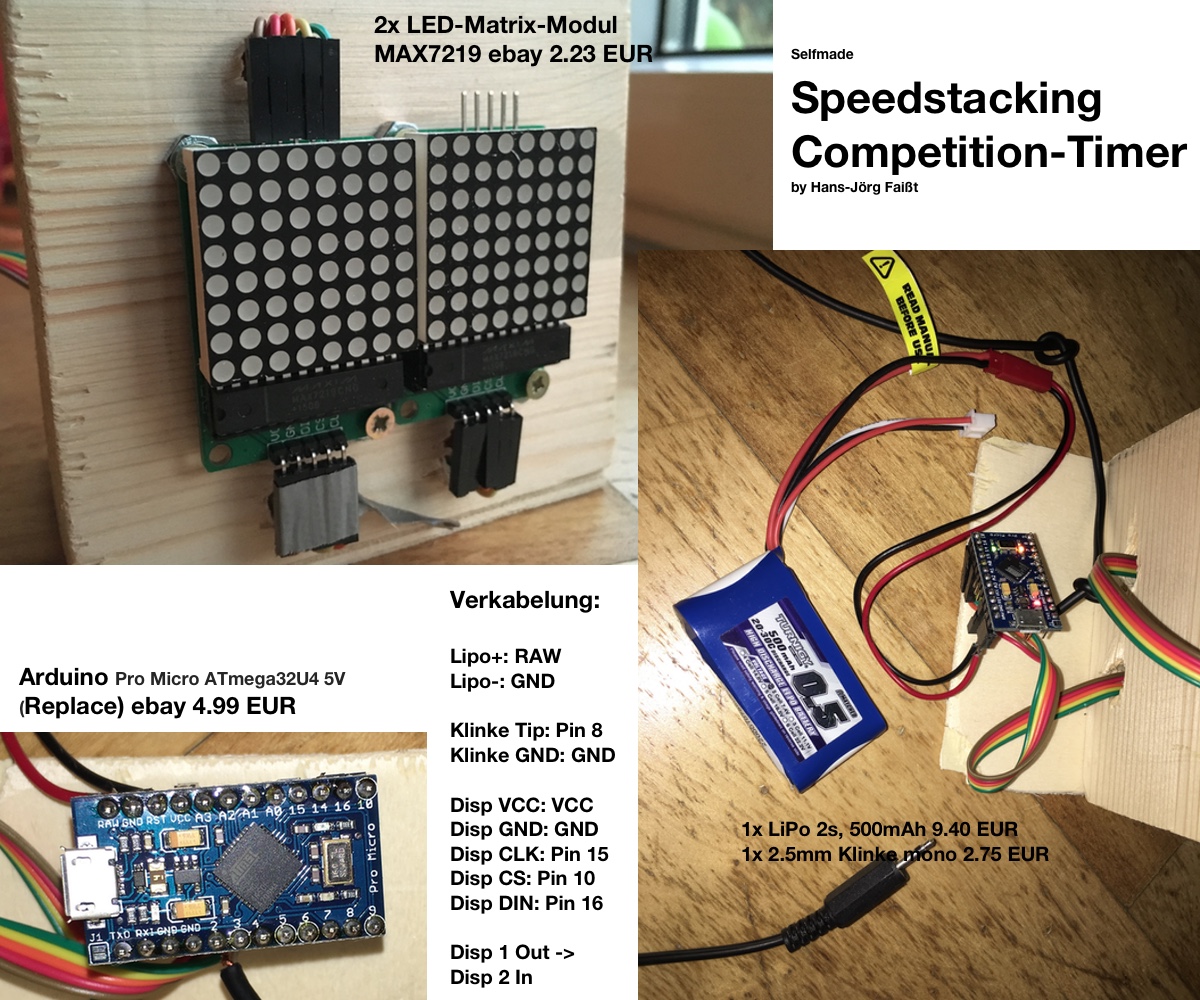

 * Create a new LedControl.
 * We use pins 16,15 and 10 on the Arduino for the SPI interface
 * Pin 16 is connected to the DATA IN-pin of the first MAX7221
 * Pin 15 is connected to the CLK-pin of the first MAX7221
 * Pin 10 is connected to the LOAD(/CS)-pin of the first MAX7221
 */
LedControl Disp=LedControl(16,15,10,2);

byte Null[4]={B00000000,B01111111,B01000001,B01111111};
byte Eins[4]={B00000000,B00000000,B01111111,B00000000};
byte Zwei[4]={B00000000,B01111001,B01001001,B01001111};
byte Drei[4]={B00000000,B01001001,B01001001,B01111111};
byte Vier[4]={B00000000,B00001111,B00001000,B01111111};
byte Funf[4]={B00000000,B01001111,B01001001,B01111001};
byte Sech[4]={B00000000,B01111111,B01001001,B01111001};
byte Sieb[4]={B00000000,B00000001,B00000001,B01111111};
byte Acht[4]={B00000000,B01111111,B01001001,B01111111};
byte Neun[4]={B00000000,B01001111,B01001001,B01111111};


void setup()
{
  // We start the serial library to output our messages.
  if (Debug)
  {
    Serial.begin(57600);
    while (!Serial) ;
    Serial.println("Start Test");
    Serial.println("Startup StackWatch");
  }
   /*
   The MAX72XX is in power-saving mode on startup,
   we have to do a wakeup call
   */
  Disp.shutdown(0,false);
  Disp.setIntensity(0,4);  // brightness medium
  Disp.clearDisplay(0);
  if (DisplayType == DISP_MATRIX)
  { // second MAX7219
    Disp.shutdown(1,false);
    Disp.setIntensity(1,4);
    Disp.clearDisplay(1);
  }

  mySerial.begin(1200);
}



void Matrix(int panel, int digit, int value)
{
  int row=0;

  if (digit==1) row = 4;
  else row = 0;

  switch (value)
  {
    case 0:
      Disp.setRow(panel,row+0,Null[0]);
      Disp.setRow(panel,row+1,Null[1]);
      Disp.setRow(panel,row+2,Null[2]);
      Disp.setRow(panel,row+3,Null[3]);
    break;
    case 1:
      Disp.setRow(panel,row+0,Eins[0]);
      Disp.setRow(panel,row+1,Eins[1]);
      Disp.setRow(panel,row+2,Eins[2]);
      Disp.setRow(panel,row+3,Eins[3]);
    break;
    case 2:
      Disp.setRow(panel,row+0,Zwei[0]);
      Disp.setRow(panel,row+1,Zwei[1]);
      Disp.setRow(panel,row+2,Zwei[2]);
      Disp.setRow(panel,row+3,Zwei[3]);
    break;
    break;
    case 3:
      Disp.setRow(panel,row+0,Drei[0]);
      Disp.setRow(panel,row+1,Drei[1]);
      Disp.setRow(panel,row+2,Drei[2]);
      Disp.setRow(panel,row+3,Drei[3]);
    break;
    case 4:
      Disp.setRow(panel,row+0,Vier[0]);
      Disp.setRow(panel,row+1,Vier[1]);
      Disp.setRow(panel,row+2,Vier[2]);
      Disp.setRow(panel,row+3,Vier[3]);
    break;
    case 5:
      Disp.setRow(panel,row+0,Funf[0]);
      Disp.setRow(panel,row+1,Funf[1]);
      Disp.setRow(panel,row+2,Funf[2]);
      Disp.setRow(panel,row+3,Funf[3]);
    break;
    case 6:
      Disp.setRow(panel,row+0,Sech[0]);
      Disp.setRow(panel,row+1,Sech[1]);
      Disp.setRow(panel,row+2,Sech[2]);
      Disp.setRow(panel,row+3,Sech[3]);
    break;
    case 7:
      Disp.setRow(panel,row+0,Sieb[0]);
      Disp.setRow(panel,row+1,Sieb[1]);
      Disp.setRow(panel,row+2,Sieb[2]);
      Disp.setRow(panel,row+3,Sieb[3]);
    break;
    case 8:
      Disp.setRow(panel,row+0,Acht[0]);
      Disp.setRow(panel,row+1,Acht[1]);
      Disp.setRow(panel,row+2,Acht[2]);
      Disp.setRow(panel,row+3,Acht[3]);
    break;
    case 9:
      Disp.setRow(panel,row+0,Neun[0]);
      Disp.setRow(panel,row+1,Neun[1]);
      Disp.setRow(panel,row+2,Neun[2]);
      Disp.setRow(panel,row+3,Neun[3]);
    break;
    case -1:
      Disp.setRow(panel,row+0,0);
      Disp.setRow(panel,row+1,0);
      Disp.setRow(panel,row+2,0);
      Disp.setRow(panel,row+3,0);
    break;
    case -2:
      Disp.setRow(panel,row+0,0);
      Disp.setRow(panel,row+1,B00011000);
      Disp.setRow(panel,row+2,B00011000);
      Disp.setRow(panel,row+3,0);
    break;
  }
}


void loop()
{
  if (mySerial.available())
  {
     RxByte[i] = mySerial.read();
     if (Debug) Serial.print(RxByte[i]);
     if ((RxByte[i] == 13) || (i == 9)) // end of message
     {
       i = 0;
       if (DisplayType == DISP_SEGMENT)
       {
         if (RxByte[0] == 'I') Disp.setChar(0,5,' ',false);
         if (RxByte[0] == 'L') Disp.setChar(0,7,'H',false); else Disp.setChar(0,7,' ',false);
         if (RxByte[0] == 'R') Disp.setChar(0,0,'H',false); else Disp.setChar(0,0,' ',false);
         if (RxByte[0] == 'C') Disp.setChar(0,0,'C',false);
         if (RxByte[0] == 'A') Disp.setChar(0,0,'A',false);
         if (RxByte[0] == ' ') Disp.setChar(0,0,' ',false);
         if (RxByte[2] > 48) Disp.setChar(0,5, RxByte[2],false);
         if (isDigit(RxByte[3])) Disp.setChar(0,4,RxByte[3],true);
         if (isDigit(RxByte[4])) Disp.setChar(0,3,RxByte[4],false);
         if (isDigit(RxByte[5])) Disp.setChar(0,2,RxByte[5],false);
       }
       if (DisplayType == DISP_MATRIX)
       {
         if (RxByte[0] == 'I')   Matrix(0,0,-1);
         if (RxByte[0] == 'L')   Matrix(0,0,-2);
         if (RxByte[0] == 'R')   Matrix(0,0,-2);
         if (RxByte[0] == ' ')   Matrix(0,0,-1);
         if (RxByte[2] > 48)     Matrix(0,0,RxByte[2]-48);
         if (isDigit(RxByte[3])) Matrix(0,1,RxByte[3]-48);
         if (isDigit(RxByte[4])) Matrix(1,0,RxByte[4]-48);
         if (isDigit(RxByte[5])) Matrix(1,1,RxByte[5]-48);
         Disp.setRow(1,0,B10000000); // Punkt
       }

     }
     else i++;
  }

}
